mip_interface.h File Reference

#include <stdint.h>
#include <stddef.h>
#include "mip_parser.h"
#include "mip_cmdqueue.h"
#include "mip_dispatch.h"

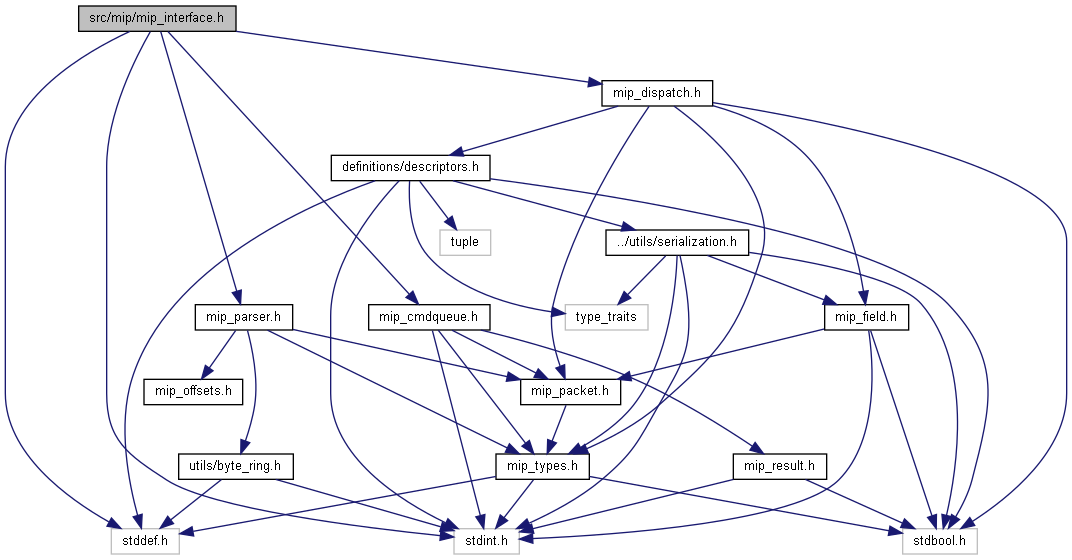

Include dependency graph for mip_interface.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mip::C::mip_interface
	State of the interface for communicating with a MIP device. More...

Namespaces
	mip
	A collection of C++ classes and functions covering the full mip api.
	mip::C

Typedefs
typedef bool(*	mip::C::mip_update_callback) (struct mip_interface *device, bool blocking)
	Callback function typedef for custom update behavior. More...
typedef struct mip::C::mip_interface	mip::C::mip_interface
	State of the interface for communicating with a MIP device. More...

Functions
void	mip::C::mip_interface_init (mip_interface *device, uint8_t *parse_buffer, size_t parse_buffer_size, timeout_type parse_timeout, timeout_type base_reply_timeout)
remaining_count	mip::C::mip_interface_receive_bytes (mip_interface *device, const uint8_t *data, size_t length, timestamp_type timestamp)
void	mip::C::mip_interface_process_unparsed_packets (mip_interface *device)
bool	mip::C::mip_interface_update (mip_interface *device, bool blocking)
bool	mip::C::mip_interface_default_update (mip_interface *device, bool blocking)
bool	mip::C::mip_interface_send_to_device (mip_interface *device, const uint8_t *data, size_t length)
bool	mip::C::mip_interface_parse_callback (void *device, const mip_packet *packet, timestamp_type timestamp)
void	mip::C::mip_interface_receive_packet (mip_interface *device, const mip_packet *packet, timestamp_type timestamp)
enum mip_cmd_result	mip::C::mip_interface_wait_for_reply (mip_interface *device, const mip_pending_cmd *cmd)
enum mip_cmd_result	mip::C::mip_interface_run_command (mip_interface *device, uint8_t descriptor_set, uint8_t field_descriptor, const uint8_t *payload, uint8_t payload_length)
enum mip_cmd_result	mip::C::mip_interface_run_command_with_response (mip_interface *device, uint8_t descriptor_set, uint8_t field_descriptor, const uint8_t *payload, uint8_t payload_length, uint8_t response_descriptor, uint8_t *response_data, uint8_t *response_length_inout)
enum mip_cmd_result	mip::C::mip_interface_run_command_packet (mip_interface *device, const mip_packet *packet, mip_pending_cmd *cmd)
bool	mip::C::mip_interface_start_command_packet (mip_interface *device, const mip_packet *packet, mip_pending_cmd *cmd)
void	mip::C::mip_interface_register_packet_callback (mip_interface *device, mip_dispatch_handler *handler, uint8_t descriptor_set, bool after_fields, mip_dispatch_packet_callback callback, void *user_data)
void	mip::C::mip_interface_register_field_callback (mip_interface *device, mip_dispatch_handler *handler, uint8_t descriptor_set, uint8_t field_descriptor, mip_dispatch_field_callback callback, void *user_data)
void	mip::C::mip_interface_register_extractor (mip_interface *device, mip_dispatch_handler *handler, uint8_t descriptor_set, uint8_t field_descriptor, mip_dispatch_extractor callback, void *field_ptr)
void	mip::C::mip_interface_set_update_function (mip_interface *device, mip_update_callback function)
void	mip::C::mip_interface_set_user_pointer (mip_interface *device, void *pointer)
void	mip::C::mip_interface_set_max_packets_per_update (mip_interface *device, unsigned int max_packets)
unsigned int	mip::C::mip_interface_max_packets_per_update (const mip_interface *device)
mip_update_callback	mip::C::mip_interface_update_function (mip_interface *device)
void *	mip::C::mip_interface_user_pointer (const mip_interface *device)
mip_parser *	mip::C::mip_interface_parser (mip_interface *device)
mip_cmd_queue *	mip::C::mip_interface_cmd_queue (mip_interface *device)
bool	mip::C::mip_interface_user_recv_from_device (mip_interface *device, uint8_t *buffer, size_t max_length, size_t *out_length, timestamp_type *timestamp_out)
	Receives new data from the device. Called repeatedly by mip_interface_update() while waiting for command responses. More...
bool	mip::C::mip_interface_user_send_to_device (mip_interface *device, const uint8_t *data, size_t length)
