Base Commands [C]

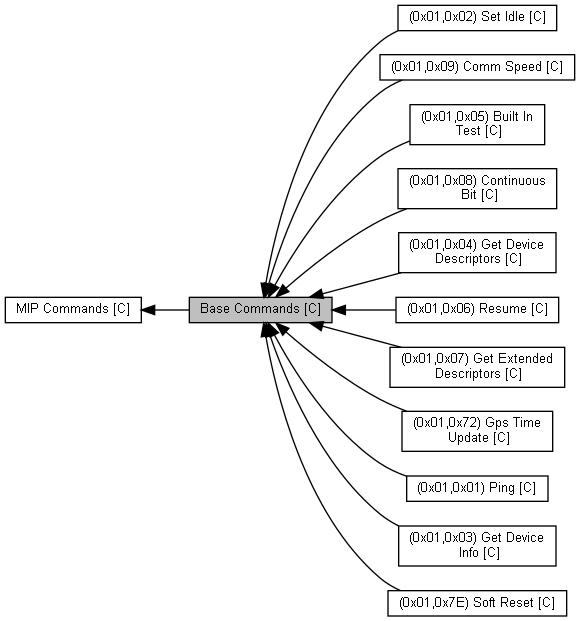

Collaboration diagram for Base Commands [C]:

Modules
	(0x01,0x01) Ping [C]
	(0x01,0x02) Set Idle [C]
	(0x01,0x03) Get Device Info [C]
	(0x01,0x04) Get Device Descriptors [C]
	(0x01,0x05) Built In Test [C]
	(0x01,0x06) Resume [C]
	(0x01,0x07) Get Extended Descriptors [C]
	(0x01,0x08) Continuous Bit [C]
	(0x01,0x09) Comm Speed [C]
	(0x01,0x72) Gps Time Update [C]
	(0x01,0x7E) Soft Reset [C]

Classes
struct	mip::C::mip_base_device_info

Typedefs
typedef struct mip_base_device_info	mip::C::mip_base_device_info
typedef uint8_t	mip::C::mip_time_format
typedef uint32_t	mip::C::mip_commanded_test_bits_gq7

Enumerations
enum	{   mip::C::MIP_BASE_CMD_DESC_SET = 0x01 , mip::C::MIP_CMD_DESC_BASE_PING = 0x01 , mip::C::MIP_CMD_DESC_BASE_SET_TO_IDLE = 0x02 , mip::C::MIP_CMD_DESC_BASE_GET_DEVICE_INFO = 0x03 ,   mip::C::MIP_CMD_DESC_BASE_GET_DEVICE_DESCRIPTORS = 0x04 , mip::C::MIP_CMD_DESC_BASE_BUILT_IN_TEST = 0x05 , mip::C::MIP_CMD_DESC_BASE_RESUME = 0x06 , mip::C::MIP_CMD_DESC_BASE_GET_EXTENDED_DESCRIPTORS = 0x07 ,   mip::C::MIP_CMD_DESC_BASE_CONTINUOUS_BIT = 0x08 , mip::C::MIP_CMD_DESC_BASE_COMM_SPEED = 0x09 , mip::C::MIP_CMD_DESC_BASE_GPS_TIME_BROADCAST = 0x71 , mip::C::MIP_CMD_DESC_BASE_GPS_TIME_BROADCAST_NEW = 0x72 ,   mip::C::MIP_CMD_DESC_BASE_SYSTEM_TIME = 0x73 , mip::C::MIP_CMD_DESC_BASE_SOFT_RESET = 0x7E , mip::C::MIP_REPLY_DESC_BASE_DEVICE_INFO = 0x81 , mip::C::MIP_REPLY_DESC_BASE_DEVICE_DESCRIPTORS = 0x82 ,   mip::C::MIP_REPLY_DESC_BASE_BUILT_IN_TEST = 0x83 , mip::C::MIP_REPLY_DESC_BASE_GPS_CORRELATION_WEEK = 0x84 , mip::C::MIP_REPLY_DESC_BASE_GPS_CORRELATION_SECONDS = 0x85 , mip::C::MIP_REPLY_DESC_BASE_GET_EXTENDED_DESCRIPTORS = 0x86 ,   mip::C::MIP_REPLY_DESC_BASE_CONTINUOUS_BIT = 0x88 , mip::C::MIP_REPLY_DESC_BASE_COMM_SPEED = 0x89 }

Functions
void	mip::C::insert_mip_base_device_info (mip_serializer *serializer, const mip_base_device_info *self)
void	mip::C::extract_mip_base_device_info (mip_serializer *serializer, mip_base_device_info *self)
void	mip::C::insert_mip_time_format (struct mip_serializer *serializer, const mip_time_format self)
void	mip::C::extract_mip_time_format (struct mip_serializer *serializer, mip_time_format *self)
void	mip::C::insert_mip_commanded_test_bits_gq7 (struct mip_serializer *serializer, const mip_commanded_test_bits_gq7 self)
void	mip::C::extract_mip_commanded_test_bits_gq7 (struct mip_serializer *serializer, mip_commanded_test_bits_gq7 *self)

Detailed Description

Typedef Documentation

mip_base_device_info

typedef struct mip_base_device_info mip::C::mip_base_device_info

mip_commanded_test_bits_gq7

typedef uint32_t mip::C::mip_commanded_test_bits_gq7

mip_time_format

typedef uint8_t mip::C::mip_time_format

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
MIP_BASE_CMD_DESC_SET
MIP_CMD_DESC_BASE_PING
MIP_CMD_DESC_BASE_SET_TO_IDLE
MIP_CMD_DESC_BASE_GET_DEVICE_INFO
MIP_CMD_DESC_BASE_GET_DEVICE_DESCRIPTORS
MIP_CMD_DESC_BASE_BUILT_IN_TEST
MIP_CMD_DESC_BASE_RESUME
MIP_CMD_DESC_BASE_GET_EXTENDED_DESCRIPTORS
MIP_CMD_DESC_BASE_CONTINUOUS_BIT
MIP_CMD_DESC_BASE_COMM_SPEED
MIP_CMD_DESC_BASE_GPS_TIME_BROADCAST
MIP_CMD_DESC_BASE_GPS_TIME_BROADCAST_NEW
MIP_CMD_DESC_BASE_SYSTEM_TIME
MIP_CMD_DESC_BASE_SOFT_RESET
MIP_REPLY_DESC_BASE_DEVICE_INFO
MIP_REPLY_DESC_BASE_DEVICE_DESCRIPTORS
MIP_REPLY_DESC_BASE_BUILT_IN_TEST
MIP_REPLY_DESC_BASE_GPS_CORRELATION_WEEK
MIP_REPLY_DESC_BASE_GPS_CORRELATION_SECONDS
MIP_REPLY_DESC_BASE_GET_EXTENDED_DESCRIPTORS
MIP_REPLY_DESC_BASE_CONTINUOUS_BIT
MIP_REPLY_DESC_BASE_COMM_SPEED

Function Documentation

extract_mip_base_device_info()

void mip::C::extract_mip_base_device_info	(	mip_serializer *	serializer,
		mip_base_device_info *	self
	)

extract_mip_commanded_test_bits_gq7()

void mip::C::extract_mip_commanded_test_bits_gq7	(	struct mip_serializer *	serializer,
		mip_commanded_test_bits_gq7 *	self
	)

extract_mip_time_format()

void mip::C::extract_mip_time_format	(	struct mip_serializer *	serializer,
		mip_time_format *	self
	)

insert_mip_base_device_info()

void mip::C::insert_mip_base_device_info	(	mip_serializer *	serializer,
		const mip_base_device_info *	self
	)

insert_mip_commanded_test_bits_gq7()

void mip::C::insert_mip_commanded_test_bits_gq7	(	struct mip_serializer *	serializer,
		const mip_commanded_test_bits_gq7	self
	)

insert_mip_time_format()

void mip::C::insert_mip_time_format	(	struct mip_serializer *	serializer,
		const mip_time_format	self
	)
