Functions for handling MIP packets. More...

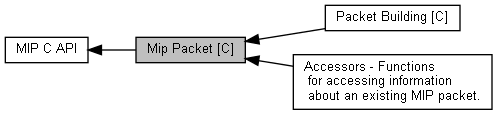

Collaboration diagram for Mip Packet [C]:
Modules | |
| Packet Building [C] | |
| Functions for building new MIP packets. | |
| Accessors - Functions for accessing information about an existing MIP packet. | |
Classes | |
| struct | mip::C::mip_packet |
| Structure representing a MIP Packet. More... | |
Typedefs | |
| typedef uint_least16_t | mip::C::packet_length |
| Type used for the length of a MIP packet. More... | |
| typedef struct mip::C::mip_packet | mip::C::mip_packet |
| Structure representing a MIP Packet. More... | |
Detailed Description
Functions for handling MIP packets.
A MIP Packet is represented by the mip_packet struct.
+-------+-------+------+------+------------+-----/ /----+------------+----
| SYNC1 | SYNC2 | DESC | PLEN | Field | ... | Checksum | remaining buffer space...
+-------+-------+------+------+------------+-----/ /----+------------+----
Typedef Documentation
◆ mip_packet
| typedef struct mip::C::mip_packet mip::C::mip_packet |
Structure representing a MIP Packet.
Use to inspect received packets or construct new ones.
- Note
- This should be considered an "opaque" structure; its members should be considered an internal implementation detail. Avoid accessing them directly as they are subject to change in future versions of this software.
◆ packet_length
| typedef uint_least16_t mip::C::packet_length |
Type used for the length of a MIP packet.
