mip_cmdqueue.c File Reference

#include "mip_cmdqueue.h"
#include "mip_field.h"
#include "mip_packet.h"
#include <string.h>
#include <assert.h>

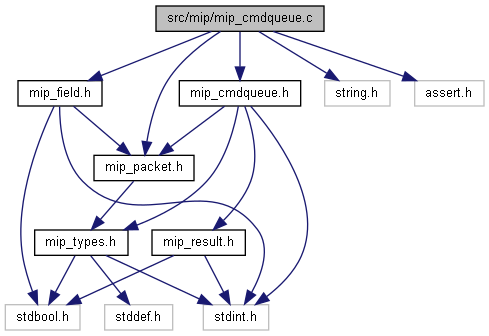

Include dependency graph for mip_cmdqueue.c:

Macros
#define	MIP_REPLY_DESC_GLOBAL_ACK_NACK   0xF1
#define	MIP_INDEX_REPLY_DESCRIPTOR   0
#define	MIP_INDEX_REPLY_ACK_CODE   1

Functions
void	mip_pending_cmd_init (mip_pending_cmd *cmd, uint8_t descriptor_set, uint8_t field_descriptor)
	Initialize a pending command with no reponse data or additional time. More...
void	mip_pending_cmd_init_with_timeout (mip_pending_cmd *cmd, uint8_t descriptor_set, uint8_t field_descriptor, timeout_type additional_time)
	Initialize a pending mip commmand with extra timeout time. More...
void	mip_pending_cmd_init_with_response (mip_pending_cmd *cmd, uint8_t descriptor_set, uint8_t field_descriptor, uint8_t response_descriptor, uint8_t *response_buffer, uint8_t response_buffer_size)
	Initialize a pending mip commmand with expected response data. More...
void	mip_pending_cmd_init_full (mip_pending_cmd *cmd, uint8_t descriptor_set, uint8_t field_descriptor, uint8_t response_descriptor, uint8_t *response_buffer, uint8_t response_buffer_size, timeout_type additional_time)
	Initialize a pending mip commmand with all parameters. More...
enum mip_cmd_result	mip_pending_cmd_status (const mip_pending_cmd *cmd)
	Returns the status of the pending command. More...
const uint8_t *	mip_pending_cmd_response (const mip_pending_cmd *cmd)
	Returns the response payload pointer. More...
uint8_t	mip_pending_cmd_response_length (const mip_pending_cmd *cmd)
	Returns the length of the response data. More...
bool	mip_pending_cmd_check_timeout (const mip_pending_cmd *cmd, timestamp_type now)
	Checks if the command should time out. More...
void	mip_cmd_queue_init (mip_cmd_queue *queue, timeout_type base_reply_timeout)
	Initializes a command queue. More...
void	mip_cmd_queue_enqueue (mip_cmd_queue *queue, mip_pending_cmd *cmd)
	Queue a command to wait for replies. More...
void	mip_cmd_queue_dequeue (mip_cmd_queue *queue, mip_pending_cmd *cmd)
	Removes a pending command from the queue. More...
void	mip_cmd_queue_process_packet (mip_cmd_queue *queue, const mip_packet *packet, timestamp_type timestamp)
	Process an incoming packet and check for replies to pending commands. More...
void	mip_cmd_queue_clear (mip_cmd_queue *queue)
	Clears the command queue. More...
void	mip_cmd_queue_update (mip_cmd_queue *queue, timestamp_type now)
	Call periodically to make sure commands time out if no packets are received. More...
void	mip_cmd_queue_set_base_reply_timeout (mip_cmd_queue *queue, timeout_type timeout)
	Sets the base reply timeout for all commands. More...
timeout_type	mip_cmd_queue_base_reply_timeout (const mip_cmd_queue *queue)
	Gets the base reply timeout for all commands. More...

Macro Definition Documentation

MIP_INDEX_REPLY_ACK_CODE

#define MIP_INDEX_REPLY_ACK_CODE   1

MIP_INDEX_REPLY_DESCRIPTOR

#define MIP_INDEX_REPLY_DESCRIPTOR   0

MIP_REPLY_DESC_GLOBAL_ACK_NACK

#define MIP_REPLY_DESC_GLOBAL_ACK_NACK   0xF1

Function Documentation

mip_cmd_queue_base_reply_timeout()

timeout_type mip_cmd_queue_base_reply_timeout

(

const mip_cmd_queue *

queue

)

Gets the base reply timeout for all commands.

Returns

The minimum time to wait for a reply to any command.

mip_cmd_queue_clear()

void mip_cmd_queue_clear

(

mip_cmd_queue *

queue

)

Clears the command queue.

This must be called from the same thread context as the update function.

Parameters

queue

mip_cmd_queue_dequeue()

void mip_cmd_queue_dequeue	(	mip_cmd_queue *	queue,
		mip_pending_cmd *	cmd
	)

Removes a pending command from the queue.

mip_cmd_queue_enqueue()

void mip_cmd_queue_enqueue	(	mip_cmd_queue *	queue,
		mip_pending_cmd *	cmd
	)

Queue a command to wait for replies.

Parameters

queue
cmd	Listens for replies to this command.

Warning

The command must not be deallocated or go out of scope while the mip_cmd_status_is_finished returns false.

mip_cmd_queue_init()

void mip_cmd_queue_init	(	mip_cmd_queue *	queue,
		timeout_type	base_reply_timeout
	)

Initializes a command queue.

Parameters

queue
base_reply_timeout	The minimum timeout given to all MIP commands. Additional time may be given to specific commands which take longer. This is intended to be used to accommodate long communication latencies, such as when using a TCP connection.

mip_cmd_queue_process_packet()

void mip_cmd_queue_process_packet	(	mip_cmd_queue *	queue,
		const mip_packet *	packet,
		timestamp_type	timestamp
	)

Process an incoming packet and check for replies to pending commands.

Call this from the Mip_parser callback, passing the arguments directly.

Parameters

queue
packet	The received MIP packet. Assumed to be valid.
timestamp	The time the packet was received

mip_cmd_queue_set_base_reply_timeout()

void mip_cmd_queue_set_base_reply_timeout	(	mip_cmd_queue *	queue,
		timeout_type	timeout
	)

Sets the base reply timeout for all commands.

THe base reply timeout is the minimum time to wait for a reply.

Parameters

queue
timeout

mip_cmd_queue_update()

void mip_cmd_queue_update	(	mip_cmd_queue *	queue,
		timestamp_type	now
	)

Call periodically to make sure commands time out if no packets are received.

Call this during the device update if no calls to mip_cmd_queue_process_packet are made (e.g. because no packets were received). It is safe to call this in either case.

Parameters

queue
now

mip_pending_cmd_check_timeout()

bool mip_pending_cmd_check_timeout	(	const mip_pending_cmd *	cmd,
		timestamp_type	now
	)

Checks if the command should time out.

Parameters

cmd
now	Current time

Returns

true if the command should time out. Only possible for MIP_STATUS_WAITING.

false if the command should not time out.

mip_pending_cmd_init()

void mip_pending_cmd_init	(	mip_pending_cmd *	cmd,
		uint8_t	descriptor_set,
		uint8_t	field_descriptor
	)

Initialize a pending command with no reponse data or additional time.

Parameters

cmd
descriptor_set	Command descriptor set.
field_descriptor	Command field descriptor.

mip_pending_cmd_init_full()

void mip_pending_cmd_init_full	(	mip_pending_cmd *	cmd,
		uint8_t	descriptor_set,
		uint8_t	field_descriptor,
		uint8_t	response_descriptor,
		uint8_t *	response_buffer,
		uint8_t	response_buffer_size,
		timeout_type	additional_time
	)

Initialize a pending mip commmand with all parameters.

Parameters

cmd
descriptor_set	Command descriptor set.
field_descriptor	Command field descriptor.
response_descriptor	Optional response data descriptor. Use 0x00 if no data is expected.
response_buffer	Optional buffer to hold response data, if any. If NULL, response_buffer_size must be 0.
response_buffer_size	Size of the response buffer. The response will be limited to this size.
additional_time	Additional time on top of the base reply timeout for this specific command.

mip_pending_cmd_init_with_response()

void mip_pending_cmd_init_with_response	(	mip_pending_cmd *	cmd,
		uint8_t	descriptor_set,
		uint8_t	field_descriptor,
		uint8_t	response_descriptor,
		uint8_t *	response_buffer,
		uint8_t	response_buffer_size
	)

Initialize a pending mip commmand with expected response data.

Parameters

cmd
descriptor_set	Command descriptor set.
field_descriptor	Command field descriptor.
response_descriptor	Optional response data descriptor. Use 0x00 if no data is expected.
response_buffer	Optional buffer to hold response data, if any. If NULL, response_buffer_size must be 0.
response_buffer_size	Optional buffer to hold response data, if any. If NULL, response_buffer_size must be 0.
response_buffer_size	Size of the response buffer. The response will be limited to this size.

mip_pending_cmd_init_with_timeout()

void mip_pending_cmd_init_with_timeout	(	mip_pending_cmd *	cmd,
		uint8_t	descriptor_set,
		uint8_t	field_descriptor,
		timeout_type	additional_time
	)

Initialize a pending mip commmand with extra timeout time.

Parameters

cmd
descriptor_set	Command descriptor set.
field_descriptor	Command field descriptor.
additional_time	Additional time on top of the base reply timeout for this specific command.

mip_pending_cmd_response()

const uint8_t* mip_pending_cmd_response

(

const mip_pending_cmd *

cmd

)

Returns the response payload pointer.

This function may only be called after the command finishes with an ACK.

mip_pending_cmd_response_length()

uint8_t mip_pending_cmd_response_length

(

const mip_pending_cmd *

cmd

)

Returns the length of the response data.

This function may only be called after the command finishes. If the command completed with a NACK, or if it timed out, the response length will be zero.

mip_pending_cmd_status()

enum mip_cmd_result mip_pending_cmd_status

(

const mip_pending_cmd *

cmd

)

Returns the status of the pending command.

See also

mip_cmd_status
