Filter Commands [CPP]
MIP Commands [CPP]

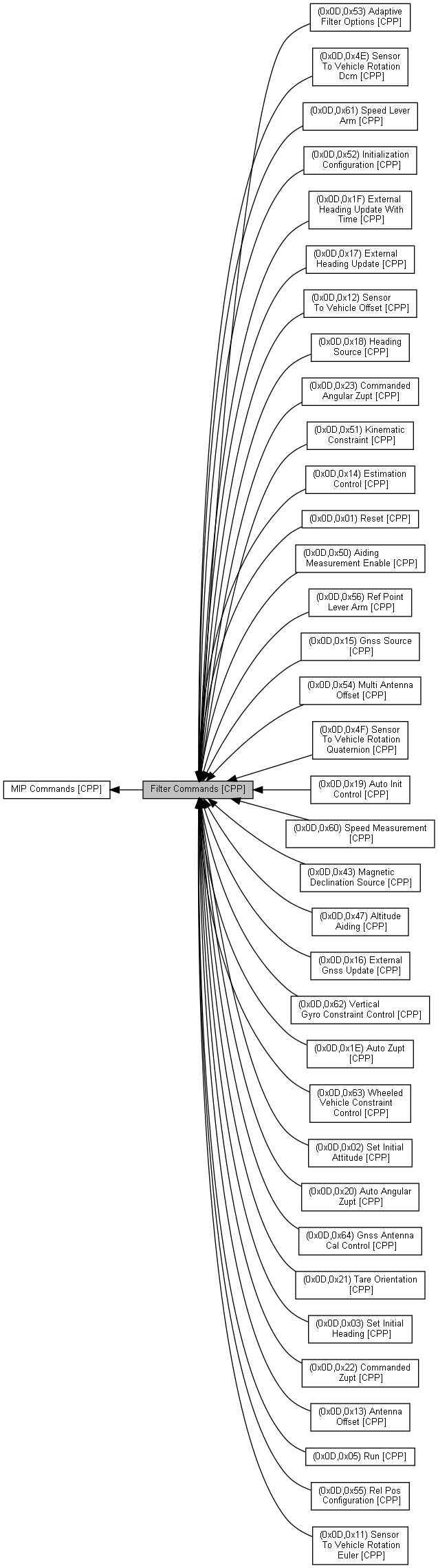

Collaboration diagram for Filter Commands [CPP]:

Modules

 (0x0D,0x01) Reset [CPP]

 (0x0D,0x02) Set Initial Attitude [CPP]

 (0x0D,0x14) Estimation Control [CPP]

 (0x0D,0x16) External Gnss Update [CPP]

 (0x0D,0x17) External Heading Update [CPP]

 (0x0D,0x1F) External Heading Update With Time [CPP]

 (0x0D,0x21) Tare Orientation [CPP]

 (0x0D,0x11) Sensor To Vehicle Rotation Euler [CPP]

 (0x0D,0x4E) Sensor To Vehicle Rotation Dcm [CPP]

 (0x0D,0x4F) Sensor To Vehicle Rotation Quaternion [CPP]

 (0x0D,0x12) Sensor To Vehicle Offset [CPP]

 (0x0D,0x13) Antenna Offset [CPP]

 (0x0D,0x15) Gnss Source [CPP]

 (0x0D,0x18) Heading Source [CPP]

 (0x0D,0x19) Auto Init Control [CPP]

 (0x0D,0x47) Altitude Aiding [CPP]

 (0x0D,0x1E) Auto Zupt [CPP]

 (0x0D,0x20) Auto Angular Zupt [CPP]

 (0x0D,0x22) Commanded Zupt [CPP]

 (0x0D,0x23) Commanded Angular Zupt [CPP]

 (0x0D,0x50) Aiding Measurement Enable [CPP]

 (0x0D,0x05) Run [CPP]

 (0x0D,0x51) Kinematic Constraint [CPP]

 (0x0D,0x52) Initialization Configuration [CPP]

 (0x0D,0x53) Adaptive Filter Options [CPP]

 (0x0D,0x54) Multi Antenna Offset [CPP]

 (0x0D,0x55) Rel Pos Configuration [CPP]

 (0x0D,0x56) Ref Point Lever Arm [CPP]

 (0x0D,0x60) Speed Measurement [CPP]

 (0x0D,0x61) Speed Lever Arm [CPP]

 (0x0D,0x63) Wheeled Vehicle Constraint Control [CPP]

 (0x0D,0x62) Vertical Gyro Constraint Control [CPP]

 (0x0D,0x64) Gnss Antenna Cal Control [CPP]

 (0x0D,0x43) Magnetic Declination Source [CPP]

 (0x0D,0x03) Set Initial Heading [CPP]


Enumerations

enum  {
  mip::commands_filter::DESCRIPTOR_SET = 0x0D , mip::commands_filter::CMD_RESET_FILTER = 0x01 , mip::commands_filter::CMD_SET_INITIAL_ATTITUDE = 0x02 , mip::commands_filter::CMD_SET_INITIAL_HEADING = 0x03 ,
  mip::commands_filter::CMD_SET_INITIAL_HEADING_FROM_MAG = 0x04 , mip::commands_filter::CMD_RUN = 0x05 , mip::commands_filter::CMD_SELECT_FILTER = 0x0F , mip::commands_filter::CMD_VEHICLE_DYNAMICS_MODE = 0x10 ,
  mip::commands_filter::CMD_SENSOR2VEHICLE_ROTATION_EULER = 0x11 , mip::commands_filter::CMD_SENSOR2VEHICLE_OFFSET = 0x12 , mip::commands_filter::CMD_ANTENNA_OFFSET = 0x13 , mip::commands_filter::CMD_ESTIMATION_CONTROL_FLAGS = 0x14 ,
  mip::commands_filter::CMD_GNSS_SOURCE_CONTROL = 0x15 , mip::commands_filter::CMD_EXTERNAL_GNSS_UPDATE = 0x16 , mip::commands_filter::CMD_EXTERNAL_HEADING_UPDATE = 0x17 , mip::commands_filter::CMD_HEADING_UPDATE_CONTROL = 0x18 ,
  mip::commands_filter::CMD_AUTOINIT_CONTROL = 0x19 , mip::commands_filter::CMD_ACCEL_NOISE = 0x1A , mip::commands_filter::CMD_GYRO_NOISE = 0x1B , mip::commands_filter::CMD_ACCEL_BIAS_MODEL = 0x1C ,
  mip::commands_filter::CMD_GYRO_BIAS_MODEL = 0x1D , mip::commands_filter::CMD_ZUPT_CONTROL = 0x1E , mip::commands_filter::CMD_EXTERNAL_HEADING_UPDATE_WITH_TIME = 0x1F , mip::commands_filter::CMD_ANGULAR_ZUPT_CONTROL = 0x20 ,
  mip::commands_filter::CMD_TARE_ORIENTATION = 0x21 , mip::commands_filter::CMD_COMMANDED_ZUPT = 0x22 , mip::commands_filter::CMD_COMMANDED_ANGULAR_ZUPT = 0x23 , mip::commands_filter::CMD_AUTO_HEADING_UPDATE_CONTROL = 0x24 ,
  mip::commands_filter::CMD_MAG_AUTO_CALIBRATION_CONTROL = 0x25 , mip::commands_filter::CMD_MAG_CAPTURE_AUTO_CALIBRATION = 0x27 , mip::commands_filter::CMD_GRAVITY_NOISE = 0x28 , mip::commands_filter::CMD_PRESSURE_NOISE = 0x29 ,
  mip::commands_filter::CMD_GRAVITY_NOISE_MINIMUM = 0x2A , mip::commands_filter::CMD_HARD_IRON_OFFSET_NOISE = 0x2B , mip::commands_filter::CMD_SOFT_IRON_MATRIX_NOISE = 0x2C , mip::commands_filter::CMD_LOW_PASS_SENSOR_FILTER = 0x30 ,
  mip::commands_filter::CMD_MAG_NOISE = 0x42 , mip::commands_filter::CMD_DECLINATION_SOURCE = 0x43 , mip::commands_filter::CMD_HOT_START_CONTROL = 0x48 , mip::commands_filter::CMD_SECONDARY_VELOCITY_AIDING_CONTROL = 0x4A ,
  mip::commands_filter::CMD_INCLINATION_SOURCE = 0x4C , mip::commands_filter::CMD_MAGNETIC_MAGNITUDE_SOURCE = 0x4D , mip::commands_filter::CMD_SENSOR2VEHICLE_ROTATION_DCM = 0x4E , mip::commands_filter::CMD_SENSOR2VEHICLE_ROTATION_QUATERNION = 0x4F ,
  mip::commands_filter::CMD_REFERENCE_POSITION = 0x26 , mip::commands_filter::CMD_ENABLE_MEASUREMENT = 0x41 , mip::commands_filter::CMD_ACCEL_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0x44 , mip::commands_filter::CMD_MAG_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0x45 ,
  mip::commands_filter::CMD_MAG_DIP_ANGLE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0x46 , mip::commands_filter::CMD_ALTITUDE_AIDING_CONTROL = 0x47 , mip::commands_filter::CMD_SECONDARY_PITCH_ROLL_AIDING_CONTROL = 0x4B , mip::commands_filter::CMD_AIDING_MEASUREMENT_ENABLE = 0x50 ,
  mip::commands_filter::CMD_KINEMATIC_CONSTRAINT = 0x51 , mip::commands_filter::CMD_INITIALIZATION_CONFIGURATION = 0x52 , mip::commands_filter::CMD_ADAPTIVE_FILTER_OPTIONS = 0x53 , mip::commands_filter::CMD_MULTI_ANTENNA_OFFSET = 0x54 ,
  mip::commands_filter::CMD_REL_POS_CONFIGURATION = 0x55 , mip::commands_filter::CMD_REF_POINT_LEVER_ARM = 0x56 , mip::commands_filter::CMD_SPEED_MEASUREMENT = 0x60 , mip::commands_filter::CMD_SPEED_LEVER_ARM = 0x61 ,
  mip::commands_filter::CMD_GYRO_CONSTRAINT_CONTROL = 0x62 , mip::commands_filter::CMD_VEHICLE_CONSTRAINT_CONTROL = 0x63 , mip::commands_filter::CMD_ANTENNA_CALIBRATION_CONTROL = 0x64 , mip::commands_filter::CMD_TO_VEHICLE_CALIBRATION_CONTROL = 0x65 ,
  mip::commands_filter::REPLY_VEHICLE_DYNAMICS_MODE = 0x80 , mip::commands_filter::REPLY_SENSOR2VEHICLE_ROTATION_EULER = 0x81 , mip::commands_filter::REPLY_SENSOR2VEHICLE_OFFSET = 0x82 , mip::commands_filter::REPLY_ANTENNA_OFFSET = 0x83 ,
  mip::commands_filter::REPLY_ESTIMATION_CONTROL_FLAGS = 0x84 , mip::commands_filter::REPLY_GNSS_SOURCE_CONTROL = 0x86 , mip::commands_filter::REPLY_HEADING_UPDATE_CONTROL = 0x87 , mip::commands_filter::REPLY_AUTOINIT_CONTROL = 0x88 ,
  mip::commands_filter::REPLY_ACCEL_NOISE = 0x89 , mip::commands_filter::REPLY_GYRO_NOISE = 0x8A , mip::commands_filter::REPLY_MAG_NOISE = 0xB1 , mip::commands_filter::REPLY_ACCEL_BIAS_MODEL = 0x8B ,
  mip::commands_filter::REPLY_GYRO_BIAS_MODEL = 0x8C , mip::commands_filter::REPLY_ZUPT_CONTROL = 0x8D , mip::commands_filter::REPLY_ANGULAR_ZUPT_CONTROL = 0x8E , mip::commands_filter::REPLY_SELECT_FILTER = 0x8F ,
  mip::commands_filter::REPLY_GRAVITY_NOISE = 0x93 , mip::commands_filter::REPLY_PRESSURE_NOISE = 0x94 , mip::commands_filter::REPLY_GRAVITY_NOISE_MINIMUM = 0x95 , mip::commands_filter::REPLY_HARD_IRON_OFFSET_NOISE = 0x96 ,
  mip::commands_filter::REPLY_SOFT_IRON_MATRIX_NOISE = 0x97 , mip::commands_filter::REPLY_LOW_PASS_SENSOR_FILTER = 0xA0 , mip::commands_filter::REPLY_SET_INITIAL_HEADING = 0x98 , mip::commands_filter::REPLY_REFERENCE_POSITION = 0x90 ,
  mip::commands_filter::REPLY_AUTO_HEADING_UPDATE_CONTROL = 0x91 , mip::commands_filter::REPLY_MAG_AUTO_CALIBRATION_CONTROL = 0x92 , mip::commands_filter::REPLY_ENABLE_MEASUREMENT = 0xB0 , mip::commands_filter::REPLY_DECLINATION_SOURCE = 0xB2 ,
  mip::commands_filter::REPLY_ACCEL_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0xB3 , mip::commands_filter::REPLY_MAG_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0xB4 , mip::commands_filter::REPLY_MAG_DIP_ANGLE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0xB5 , mip::commands_filter::REPLY_MAG_ANGULAR_RATE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL = 0xB6 ,
  mip::commands_filter::REPLY_ALTITUDE_AIDING_CONTROL = 0xB7 , mip::commands_filter::REPLY_HOT_START_CONTROL = 0xB8 , mip::commands_filter::REPLY_SECONDARY_VELOCITY_AIDING_CONTROL = 0xBA , mip::commands_filter::REPLY_SECONDARY_PITCH_ROLL_AIDING_CONTROL = 0xBB ,
  mip::commands_filter::REPLY_INCLINATION_SOURCE = 0xBC , mip::commands_filter::REPLY_MAGNETIC_MAGNITUDE_SOURCE = 0xBD , mip::commands_filter::REPLY_SENSOR2VEHICLE_ROTATION_DCM = 0xBE , mip::commands_filter::REPLY_SENSOR2VEHICLE_ROTATION_QUATERNION = 0xBF ,
  mip::commands_filter::REPLY_AIDING_MEASUREMENT_ENABLE = 0xD0 , mip::commands_filter::REPLY_KINEMATIC_CONSTRAINT = 0xD1 , mip::commands_filter::REPLY_INITIALIZATION_CONFIGURATION = 0xD2 , mip::commands_filter::REPLY_ADAPTIVE_FILTER_OPTIONS = 0xD3 ,
  mip::commands_filter::REPLY_MULTI_ANTENNA_OFFSET = 0xD4 , mip::commands_filter::REPLY_REL_POS_CONFIGURATION = 0xD5 , mip::commands_filter::REPLY_SPEED_MEASUREMENT = 0xE0 , mip::commands_filter::REPLY_GYRO_CONSTRAINT_CONTROL = 0xE2 ,
  mip::commands_filter::REPLY_VEHICLE_CONSTRAINT_CONTROL = 0xE3 , mip::commands_filter::REPLY_ANTENNA_CALIBRATION_CONTROL = 0xE4 , mip::commands_filter::REPLY_TARE_ORIENTATION = 0xA1 , mip::commands_filter::REPLY_REF_POINT_LEVER_ARM = 0xD6 ,
  mip::commands_filter::REPLY_SPEED_LEVER_ARM = 0xE1
}

enum class  mip::commands_filter::FilterReferenceFrame : uint8_t { mip::commands_filter::ECEF = 1 , mip::commands_filter::LLH = 2 }

enum class  mip::commands_filter::FilterMagDeclinationSource : uint8_t { mip::commands_filter::NONE = 1 , mip::commands_filter::WMM = 2 , mip::commands_filter::MANUAL = 3 }


Detailed Description

Enumeration Type Documentation

◆ anonymous enum

anonymous enum
Enumerator
DESCRIPTOR_SET
CMD_RESET_FILTER
CMD_SET_INITIAL_ATTITUDE
CMD_SET_INITIAL_HEADING
CMD_SET_INITIAL_HEADING_FROM_MAG
CMD_RUN
CMD_SELECT_FILTER
CMD_VEHICLE_DYNAMICS_MODE
CMD_SENSOR2VEHICLE_ROTATION_EULER
CMD_SENSOR2VEHICLE_OFFSET
CMD_ANTENNA_OFFSET
CMD_ESTIMATION_CONTROL_FLAGS
CMD_GNSS_SOURCE_CONTROL
CMD_EXTERNAL_GNSS_UPDATE
CMD_EXTERNAL_HEADING_UPDATE
CMD_HEADING_UPDATE_CONTROL
CMD_AUTOINIT_CONTROL
CMD_ACCEL_NOISE
CMD_GYRO_NOISE
CMD_ACCEL_BIAS_MODEL
CMD_GYRO_BIAS_MODEL
CMD_ZUPT_CONTROL
CMD_EXTERNAL_HEADING_UPDATE_WITH_TIME
CMD_ANGULAR_ZUPT_CONTROL
CMD_TARE_ORIENTATION
CMD_COMMANDED_ZUPT
CMD_COMMANDED_ANGULAR_ZUPT
CMD_AUTO_HEADING_UPDATE_CONTROL
CMD_MAG_AUTO_CALIBRATION_CONTROL
CMD_MAG_CAPTURE_AUTO_CALIBRATION
CMD_GRAVITY_NOISE
CMD_PRESSURE_NOISE
CMD_GRAVITY_NOISE_MINIMUM
CMD_HARD_IRON_OFFSET_NOISE
CMD_SOFT_IRON_MATRIX_NOISE
CMD_LOW_PASS_SENSOR_FILTER
CMD_MAG_NOISE
CMD_DECLINATION_SOURCE
CMD_HOT_START_CONTROL
CMD_SECONDARY_VELOCITY_AIDING_CONTROL
CMD_INCLINATION_SOURCE
CMD_MAGNETIC_MAGNITUDE_SOURCE
CMD_SENSOR2VEHICLE_ROTATION_DCM
CMD_SENSOR2VEHICLE_ROTATION_QUATERNION
CMD_REFERENCE_POSITION
CMD_ENABLE_MEASUREMENT
CMD_ACCEL_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
CMD_MAG_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
CMD_MAG_DIP_ANGLE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
CMD_ALTITUDE_AIDING_CONTROL
CMD_SECONDARY_PITCH_ROLL_AIDING_CONTROL
CMD_AIDING_MEASUREMENT_ENABLE
CMD_KINEMATIC_CONSTRAINT
CMD_INITIALIZATION_CONFIGURATION
CMD_ADAPTIVE_FILTER_OPTIONS
CMD_MULTI_ANTENNA_OFFSET
CMD_REL_POS_CONFIGURATION
CMD_REF_POINT_LEVER_ARM
CMD_SPEED_MEASUREMENT
CMD_SPEED_LEVER_ARM
CMD_GYRO_CONSTRAINT_CONTROL
CMD_VEHICLE_CONSTRAINT_CONTROL
CMD_ANTENNA_CALIBRATION_CONTROL
CMD_TO_VEHICLE_CALIBRATION_CONTROL
REPLY_VEHICLE_DYNAMICS_MODE
REPLY_SENSOR2VEHICLE_ROTATION_EULER
REPLY_SENSOR2VEHICLE_OFFSET
REPLY_ANTENNA_OFFSET
REPLY_ESTIMATION_CONTROL_FLAGS
REPLY_GNSS_SOURCE_CONTROL
REPLY_HEADING_UPDATE_CONTROL
REPLY_AUTOINIT_CONTROL
REPLY_ACCEL_NOISE
REPLY_GYRO_NOISE
REPLY_MAG_NOISE
REPLY_ACCEL_BIAS_MODEL
REPLY_GYRO_BIAS_MODEL
REPLY_ZUPT_CONTROL
REPLY_ANGULAR_ZUPT_CONTROL
REPLY_SELECT_FILTER
REPLY_GRAVITY_NOISE
REPLY_PRESSURE_NOISE
REPLY_GRAVITY_NOISE_MINIMUM
REPLY_HARD_IRON_OFFSET_NOISE
REPLY_SOFT_IRON_MATRIX_NOISE
REPLY_LOW_PASS_SENSOR_FILTER
REPLY_SET_INITIAL_HEADING
REPLY_REFERENCE_POSITION
REPLY_AUTO_HEADING_UPDATE_CONTROL
REPLY_MAG_AUTO_CALIBRATION_CONTROL
REPLY_ENABLE_MEASUREMENT
REPLY_DECLINATION_SOURCE
REPLY_ACCEL_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
REPLY_MAG_MAGNITUDE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
REPLY_MAG_DIP_ANGLE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
REPLY_MAG_ANGULAR_RATE_ERROR_ADAPTIVE_MEASUREMENT_CONTROL
REPLY_ALTITUDE_AIDING_CONTROL
REPLY_HOT_START_CONTROL
REPLY_SECONDARY_VELOCITY_AIDING_CONTROL
REPLY_SECONDARY_PITCH_ROLL_AIDING_CONTROL
REPLY_INCLINATION_SOURCE
REPLY_MAGNETIC_MAGNITUDE_SOURCE
REPLY_SENSOR2VEHICLE_ROTATION_DCM
REPLY_SENSOR2VEHICLE_ROTATION_QUATERNION
REPLY_AIDING_MEASUREMENT_ENABLE
REPLY_KINEMATIC_CONSTRAINT
REPLY_INITIALIZATION_CONFIGURATION
REPLY_ADAPTIVE_FILTER_OPTIONS
REPLY_MULTI_ANTENNA_OFFSET
REPLY_REL_POS_CONFIGURATION
REPLY_SPEED_MEASUREMENT
REPLY_GYRO_CONSTRAINT_CONTROL
REPLY_VEHICLE_CONSTRAINT_CONTROL
REPLY_ANTENNA_CALIBRATION_CONTROL
REPLY_TARE_ORIENTATION
REPLY_REF_POINT_LEVER_ARM
REPLY_SPEED_LEVER_ARM

◆ FilterMagDeclinationSource

enum mip::commands_filter::FilterMagDeclinationSource : uint8_t
strong
Enumerator
NONE

Magnetic field is assumed to have an declination angle equal to zero.

WMM

Magnetic field is assumed to conform to the World Magnetic Model, calculated using current location estimate as an input to the model.

MANUAL

Magnetic field is assumed to have the declination angle specified by the user.

◆ FilterReferenceFrame

enum mip::commands_filter::FilterReferenceFrame : uint8_t
strong
Enumerator
ECEF

WGS84 Earth-fixed, earth centered coordinates.

LLH

WGS84 Latitude, longitude, and height above ellipsoid.
