mip::commands_3dm::EventAction Struct Reference

#include <commands_3dm.hpp>

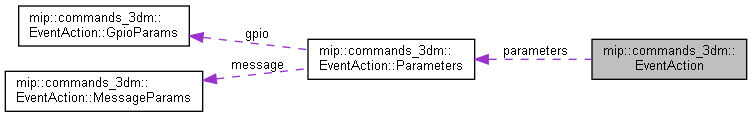

Collaboration diagram for mip::commands_3dm::EventAction:

Classes
struct	GpioParams
struct	MessageParams
union	Parameters
struct	Response

Public Types
enum class	Type : uint8_t { NONE = 0 , GPIO = 1 , MESSAGE = 2 }

Public Attributes
FunctionSelector	function = static_cast<FunctionSelector>(0)
uint8_t	instance = 0
	Action number. When function is SAVE, LOAD, or DEFAULT, this can be 0 to apply to all instances. More...
uint8_t	trigger = 0
	Trigger ID number. More...
Type	type = static_cast<Type>(0)
	Type of action to configure. More...
Parameters	parameters

Static Public Attributes
static const uint8_t	DESCRIPTOR_SET = ::mip::commands_3dm::DESCRIPTOR_SET
static const uint8_t	FIELD_DESCRIPTOR = ::mip::commands_3dm::CMD_EVENT_ACTION_CONFIG
static const bool	HAS_WRITE_FUNCTION = true
static const bool	HAS_READ_FUNCTION = true
static const bool	HAS_SAVE_FUNCTION = true
static const bool	HAS_LOAD_FUNCTION = true
static const bool	HAS_RESET_FUNCTION = true

Member Enumeration Documentation

Type

enum mip::commands_3dm::EventAction::Type : uint8_t

strong

Enumerator
NONE	No action. Parameters should be empty.
GPIO	Control the state of a GPIO pin. See GpioParameters.
MESSAGE	Output a data packet. See MessageParameters.

Member Data Documentation

DESCRIPTOR_SET

const uint8_t mip::commands_3dm::EventAction::DESCRIPTOR_SET = ::mip::commands_3dm::DESCRIPTOR_SET

static

FIELD_DESCRIPTOR

const uint8_t mip::commands_3dm::EventAction::FIELD_DESCRIPTOR = ::mip::commands_3dm::CMD_EVENT_ACTION_CONFIG

static

function

FunctionSelector mip::commands_3dm::EventAction::function = static_cast<FunctionSelector>(0)

HAS_LOAD_FUNCTION

const bool mip::commands_3dm::EventAction::HAS_LOAD_FUNCTION = true

static

HAS_READ_FUNCTION

const bool mip::commands_3dm::EventAction::HAS_READ_FUNCTION = true

static

HAS_RESET_FUNCTION

const bool mip::commands_3dm::EventAction::HAS_RESET_FUNCTION = true

static

HAS_SAVE_FUNCTION

const bool mip::commands_3dm::EventAction::HAS_SAVE_FUNCTION = true

static

HAS_WRITE_FUNCTION

const bool mip::commands_3dm::EventAction::HAS_WRITE_FUNCTION = true

static

instance

uint8_t mip::commands_3dm::EventAction::instance = 0

Action number. When function is SAVE, LOAD, or DEFAULT, this can be 0 to apply to all instances.

parameters

Parameters mip::commands_3dm::EventAction::parameters

trigger

uint8_t mip::commands_3dm::EventAction::trigger = 0

Trigger ID number.

type

Type mip::commands_3dm::EventAction::type = static_cast<Type>(0)

Type of action to configure.

---

The documentation for this struct was generated from the following file:

• src/mip/definitions/commands_3dm.hpp
