3dm Commands [CPP]
MIP Commands [CPP]

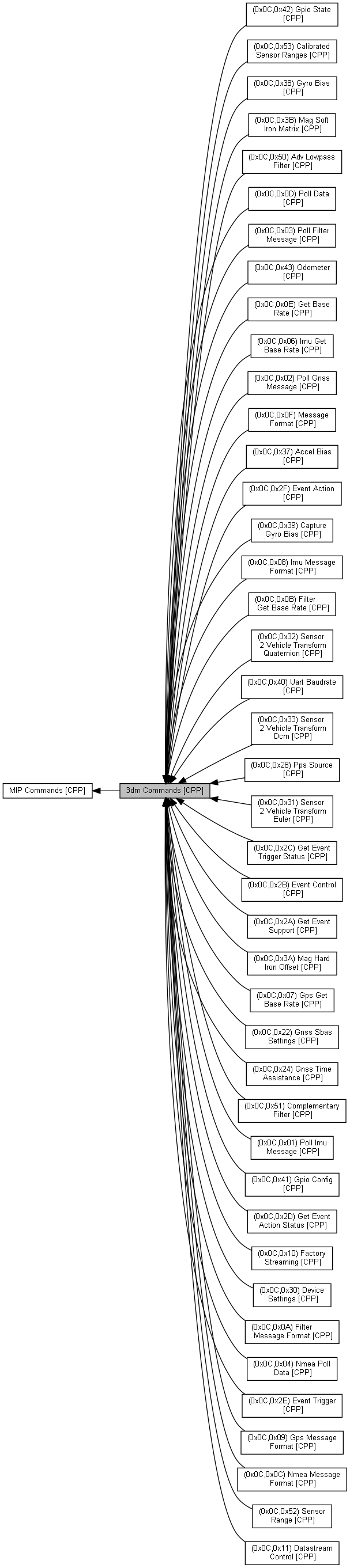

Collaboration diagram for 3dm Commands [CPP]:

Modules

 (0x0C,0x01) Poll Imu Message [CPP]

 (0x0C,0x02) Poll Gnss Message [CPP]

 (0x0C,0x03) Poll Filter Message [CPP]

 (0x0C,0x08) Imu Message Format [CPP]

 (0x0C,0x09) Gps Message Format [CPP]

 (0x0C,0x0A) Filter Message Format [CPP]

 (0x0C,0x06) Imu Get Base Rate [CPP]

 (0x0C,0x07) Gps Get Base Rate [CPP]

 (0x0C,0x0B) Filter Get Base Rate [CPP]

 (0x0C,0x0D) Poll Data [CPP]

 (0x0C,0x0E) Get Base Rate [CPP]

 (0x0C,0x0F) Message Format [CPP]

 (0x0C,0x04) Nmea Poll Data [CPP]

 (0x0C,0x0C) Nmea Message Format [CPP]

 (0x0C,0x30) Device Settings [CPP]

 (0x0C,0x40) Uart Baudrate [CPP]

 (0x0C,0x10) Factory Streaming [CPP]

 (0x0C,0x11) Datastream Control [CPP]

 (0x0C,0x22) Gnss Sbas Settings [CPP]

 (0x0C,0x24) Gnss Time Assistance [CPP]

 (0x0C,0x50) Adv Lowpass Filter [CPP]

 (0x0C,0x28) Pps Source [CPP]

 (0x0C,0x41) Gpio Config [CPP]

 (0x0C,0x42) Gpio State [CPP]

 (0x0C,0x43) Odometer [CPP]

 (0x0C,0x2A) Get Event Support [CPP]

 (0x0C,0x2B) Event Control [CPP]

 (0x0C,0x2C) Get Event Trigger Status [CPP]

 (0x0C,0x2D) Get Event Action Status [CPP]

 (0x0C,0x2E) Event Trigger [CPP]

 (0x0C,0x2F) Event Action [CPP]

 (0x0C,0x37) Accel Bias [CPP]

 (0x0C,0x38) Gyro Bias [CPP]

 (0x0C,0x39) Capture Gyro Bias [CPP]

 (0x0C,0x3A) Mag Hard Iron Offset [CPP]

 (0x0C,0x3B) Mag Soft Iron Matrix [CPP]

 (0x0C,0x31) Sensor 2 Vehicle Transform Euler [CPP]

 (0x0C,0x32) Sensor 2 Vehicle Transform Quaternion [CPP]

 (0x0C,0x33) Sensor 2 Vehicle Transform Dcm [CPP]

 (0x0C,0x51) Complementary Filter [CPP]

 (0x0C,0x52) Sensor Range [CPP]

 (0x0C,0x53) Calibrated Sensor Ranges [CPP]


Classes

struct  mip::commands_3dm::NmeaMessage


Enumerations

enum  {
  mip::commands_3dm::DESCRIPTOR_SET = 0x0C , mip::commands_3dm::CMD_POLL_IMU_MESSAGE = 0x01 , mip::commands_3dm::CMD_POLL_GNSS_MESSAGE = 0x02 , mip::commands_3dm::CMD_POLL_FILTER_MESSAGE = 0x03 ,
  mip::commands_3dm::CMD_POLL_NMEA_MESSAGE = 0x04 , mip::commands_3dm::CMD_GET_IMU_BASE_RATE = 0x06 , mip::commands_3dm::CMD_GET_GNSS_BASE_RATE = 0x07 , mip::commands_3dm::CMD_IMU_MESSAGE_FORMAT = 0x08 ,
  mip::commands_3dm::CMD_GNSS_MESSAGE_FORMAT = 0x09 , mip::commands_3dm::CMD_FILTER_MESSAGE_FORMAT = 0x0A , mip::commands_3dm::CMD_GET_FILTER_BASE_RATE = 0x0B , mip::commands_3dm::CMD_NMEA_MESSAGE_FORMAT = 0x0C ,
  mip::commands_3dm::CMD_POLL_DATA = 0x0D , mip::commands_3dm::CMD_GET_BASE_RATE = 0x0E , mip::commands_3dm::CMD_MESSAGE_FORMAT = 0x0F , mip::commands_3dm::CMD_CONFIGURE_FACTORY_STREAMING = 0x10 ,
  mip::commands_3dm::CMD_CONTROL_DATA_STREAM = 0x11 , mip::commands_3dm::CMD_RAW_RTCM_2_3_MESSAGE = 0x20 , mip::commands_3dm::CMD_GNSS_CONSTELLATION_SETTINGS = 0x21 , mip::commands_3dm::CMD_GNSS_SBAS_SETTINGS = 0x22 ,
  mip::commands_3dm::CMD_GNSS_ASSISTED_FIX_SETTINGS = 0x23 , mip::commands_3dm::CMD_GNSS_TIME_ASSISTANCE = 0x24 , mip::commands_3dm::CMD_PPS_SOURCE = 0x28 , mip::commands_3dm::CMD_EVENT_SUPPORT = 0x2A ,
  mip::commands_3dm::CMD_EVENT_CONTROL = 0x2B , mip::commands_3dm::CMD_EVENT_TRIGGER_STATUS = 0x2C , mip::commands_3dm::CMD_EVENT_ACTION_STATUS = 0x2D , mip::commands_3dm::CMD_EVENT_TRIGGER_CONFIG = 0x2E ,
  mip::commands_3dm::CMD_EVENT_ACTION_CONFIG = 0x2F , mip::commands_3dm::CMD_DEVICE_STARTUP_SETTINGS = 0x30 , mip::commands_3dm::CMD_SENSOR2VEHICLE_TRANSFORM_EUL = 0x31 , mip::commands_3dm::CMD_SENSOR2VEHICLE_TRANSFORM_QUAT = 0x32 ,
  mip::commands_3dm::CMD_SENSOR2VEHICLE_TRANSFORM_DCM = 0x33 , mip::commands_3dm::CMD_SET_GNSS_DYNAMICS_MODE = 0x34 , mip::commands_3dm::CMD_SET_IMU_SIGNAL_COND = 0x35 , mip::commands_3dm::CMD_SET_IMU_TIMESTAMP = 0x36 ,
  mip::commands_3dm::CMD_ACCEL_BIAS = 0x37 , mip::commands_3dm::CMD_GYRO_BIAS = 0x38 , mip::commands_3dm::CMD_CAPTURE_GYRO_BIAS = 0x39 , mip::commands_3dm::CMD_HARD_IRON_OFFSET = 0x3A ,
  mip::commands_3dm::CMD_SOFT_IRON_MATRIX = 0x3B , mip::commands_3dm::CMD_REALIGN_UP = 0x3C , mip::commands_3dm::CMD_REALIGN_NORTH = 0x3D , mip::commands_3dm::CMD_CONING_AND_SCULLING_ENABLE = 0x3E ,
  mip::commands_3dm::CMD_UART_BAUDRATE = 0x40 , mip::commands_3dm::CMD_GPIO_CONFIG = 0x41 , mip::commands_3dm::CMD_GPIO_STATE = 0x42 , mip::commands_3dm::CMD_ODOMETER_CONFIG = 0x43 ,
  mip::commands_3dm::CMD_ADVANCED_DATA_FILTER = 0x50 , mip::commands_3dm::CMD_LEGACY_COMP_FILTER = 0x51 , mip::commands_3dm::CMD_SENSOR_RANGE = 0x52 , mip::commands_3dm::CMD_CALIBRATED_RANGES = 0x53 ,
  mip::commands_3dm::CMD_DATASTREAM_FORMAT = 0x60 , mip::commands_3dm::CMD_DEVICE_POWER_STATE = 0x61 , mip::commands_3dm::CMD_SAVE_RESTORE_GPS_SETTINGS = 0x62 , mip::commands_3dm::CMD_DEVICE_SETTINGS = 0x63 ,
  mip::commands_3dm::CMD_RAW_CLIP_SETTINGS = 0x70 , mip::commands_3dm::REPLY_IMU_MESSAGE_FORMAT = 0x80 , mip::commands_3dm::REPLY_GNSS_MESSAGE_FORMAT = 0x81 , mip::commands_3dm::REPLY_FILTER_MESSAGE_FORMAT = 0x82 ,
  mip::commands_3dm::REPLY_IMU_BASE_RATE = 0x83 , mip::commands_3dm::REPLY_GNSS_BASE_RATE = 0x84 , mip::commands_3dm::REPLY_DATASTREAM_ENABLE = 0x85 , mip::commands_3dm::REPLY_IMU_SIGNAL_SETTINGS = 0x86 ,
  mip::commands_3dm::REPLY_UART_BAUDRATE = 0x87 , mip::commands_3dm::REPLY_DATASTREAM_FORMAT = 0x88 , mip::commands_3dm::REPLY_POWER_STATE = 0x89 , mip::commands_3dm::REPLY_FILTER_BASE_RATE = 0x8A ,
  mip::commands_3dm::REPLY_ADVANCED_DATA_FILTER = 0x8B , mip::commands_3dm::REPLY_POLL_DATA = 0x8D , mip::commands_3dm::REPLY_BASE_RATE = 0x8E , mip::commands_3dm::REPLY_MESSAGE_FORMAT = 0x8F ,
  mip::commands_3dm::REPLY_COMMUNICATIONS_MODE = 0x91 , mip::commands_3dm::REPLY_GNSS_DYNAMICS_MODE = 0x92 , mip::commands_3dm::REPLY_IMU_TIMESTAMP_VALUE = 0x93 , mip::commands_3dm::REPLY_IMU_BASIC_STATUS = 0x94 ,
  mip::commands_3dm::REPLY_IMU_ADVANCED_STATUS = 0x95 , mip::commands_3dm::REPLY_RAW_CLIP_SETTINGS = 0x96 , mip::commands_3dm::REPLY_LEGACY_COMP_FILTER = 0x97 , mip::commands_3dm::REPLY_ACCEL_BIAS_VECTOR = 0x9A ,
  mip::commands_3dm::REPLY_GYRO_BIAS_VECTOR = 0x9B , mip::commands_3dm::REPLY_HARD_IRON_OFFSET_VECTOR = 0x9C , mip::commands_3dm::REPLY_SOFT_IRON_COMP_MATRIX = 0x9D , mip::commands_3dm::REPLY_CONING_AND_SCULLING_ENABLE = 0x9E ,
  mip::commands_3dm::REPLY_GNSS_CONSTELLATION_SETTINGS = 0xA0 , mip::commands_3dm::REPLY_GNSS_SBAS_SETTINGS = 0xA1 , mip::commands_3dm::REPLY_GNSS_ASSISTED_FIX_SETTINGS = 0xA2 , mip::commands_3dm::REPLY_GNSS_TIME_ASSISTANCE = 0xA3 ,
  mip::commands_3dm::REPLY_SENSOR2VEHICLE_TRANSFORM_EUL = 0xB1 , mip::commands_3dm::REPLY_SENSOR2VEHICLE_TRANSFORM_QUAT = 0xB2 , mip::commands_3dm::REPLY_SENSOR2VEHICLE_TRANSFORM_DCM = 0xB3 , mip::commands_3dm::REPLY_EVENT_SUPPORT = 0xB4 ,
  mip::commands_3dm::REPLY_EVENT_CONTROL = 0xB5 , mip::commands_3dm::REPLY_EVENT_TRIGGER_STATUS = 0xB6 , mip::commands_3dm::REPLY_EVENT_ACTION_STATUS = 0xB7 , mip::commands_3dm::REPLY_EVENT_TRIGGER_CONFIG = 0xB8 ,
  mip::commands_3dm::REPLY_EVENT_ACTION_CONFIG = 0xB9 , mip::commands_3dm::REPLY_NMEA_MESSAGE_FORMAT = 0x8C , mip::commands_3dm::REPLY_PPS_SOURCE = 0xA8 , mip::commands_3dm::REPLY_GPIO_CONFIG = 0xC1 ,
  mip::commands_3dm::REPLY_GPIO_STATE = 0xC2 , mip::commands_3dm::REPLY_ODOMETER_CONFIG = 0xC3 , mip::commands_3dm::REPLY_SENSOR_RANGE = 0xD2 , mip::commands_3dm::REPLY_CALIBRATED_RANGES = 0xD3
}

enum class  mip::commands_3dm::SensorRangeType : uint8_t {
  mip::commands_3dm::ALL = 0 , mip::commands_3dm::ACCEL = 1 , mip::commands_3dm::GYRO = 2 , mip::commands_3dm::MAG = 3 ,
  mip::commands_3dm::PRESS = 4
}


Functions

void mip::commands_3dm::insert (Serializer &serializer, const NmeaMessage &self)

void mip::commands_3dm::extract (Serializer &serializer, NmeaMessage &self)


Detailed Description

Enumeration Type Documentation

◆ anonymous enum

anonymous enum
Enumerator
DESCRIPTOR_SET
CMD_POLL_IMU_MESSAGE
CMD_POLL_GNSS_MESSAGE
CMD_POLL_FILTER_MESSAGE
CMD_POLL_NMEA_MESSAGE
CMD_GET_IMU_BASE_RATE
CMD_GET_GNSS_BASE_RATE
CMD_IMU_MESSAGE_FORMAT
CMD_GNSS_MESSAGE_FORMAT
CMD_FILTER_MESSAGE_FORMAT
CMD_GET_FILTER_BASE_RATE
CMD_NMEA_MESSAGE_FORMAT
CMD_POLL_DATA
CMD_GET_BASE_RATE
CMD_MESSAGE_FORMAT
CMD_CONFIGURE_FACTORY_STREAMING
CMD_CONTROL_DATA_STREAM
CMD_RAW_RTCM_2_3_MESSAGE
CMD_GNSS_CONSTELLATION_SETTINGS
CMD_GNSS_SBAS_SETTINGS
CMD_GNSS_ASSISTED_FIX_SETTINGS
CMD_GNSS_TIME_ASSISTANCE
CMD_PPS_SOURCE
CMD_EVENT_SUPPORT
CMD_EVENT_CONTROL
CMD_EVENT_TRIGGER_STATUS
CMD_EVENT_ACTION_STATUS
CMD_EVENT_TRIGGER_CONFIG
CMD_EVENT_ACTION_CONFIG
CMD_DEVICE_STARTUP_SETTINGS
CMD_SENSOR2VEHICLE_TRANSFORM_EUL
CMD_SENSOR2VEHICLE_TRANSFORM_QUAT
CMD_SENSOR2VEHICLE_TRANSFORM_DCM
CMD_SET_GNSS_DYNAMICS_MODE
CMD_SET_IMU_SIGNAL_COND
CMD_SET_IMU_TIMESTAMP
CMD_ACCEL_BIAS
CMD_GYRO_BIAS
CMD_CAPTURE_GYRO_BIAS
CMD_HARD_IRON_OFFSET
CMD_SOFT_IRON_MATRIX
CMD_REALIGN_UP
CMD_REALIGN_NORTH
CMD_CONING_AND_SCULLING_ENABLE
CMD_UART_BAUDRATE
CMD_GPIO_CONFIG
CMD_GPIO_STATE
CMD_ODOMETER_CONFIG
CMD_ADVANCED_DATA_FILTER
CMD_LEGACY_COMP_FILTER
CMD_SENSOR_RANGE
CMD_CALIBRATED_RANGES
CMD_DATASTREAM_FORMAT
CMD_DEVICE_POWER_STATE
CMD_SAVE_RESTORE_GPS_SETTINGS
CMD_DEVICE_SETTINGS
CMD_RAW_CLIP_SETTINGS
REPLY_IMU_MESSAGE_FORMAT
REPLY_GNSS_MESSAGE_FORMAT
REPLY_FILTER_MESSAGE_FORMAT
REPLY_IMU_BASE_RATE
REPLY_GNSS_BASE_RATE
REPLY_DATASTREAM_ENABLE
REPLY_IMU_SIGNAL_SETTINGS
REPLY_UART_BAUDRATE
REPLY_DATASTREAM_FORMAT
REPLY_POWER_STATE
REPLY_FILTER_BASE_RATE
REPLY_ADVANCED_DATA_FILTER
REPLY_POLL_DATA
REPLY_BASE_RATE
REPLY_MESSAGE_FORMAT
REPLY_COMMUNICATIONS_MODE
REPLY_GNSS_DYNAMICS_MODE
REPLY_IMU_TIMESTAMP_VALUE
REPLY_IMU_BASIC_STATUS
REPLY_IMU_ADVANCED_STATUS
REPLY_RAW_CLIP_SETTINGS
REPLY_LEGACY_COMP_FILTER
REPLY_ACCEL_BIAS_VECTOR
REPLY_GYRO_BIAS_VECTOR
REPLY_HARD_IRON_OFFSET_VECTOR
REPLY_SOFT_IRON_COMP_MATRIX
REPLY_CONING_AND_SCULLING_ENABLE
REPLY_GNSS_CONSTELLATION_SETTINGS
REPLY_GNSS_SBAS_SETTINGS
REPLY_GNSS_ASSISTED_FIX_SETTINGS
REPLY_GNSS_TIME_ASSISTANCE
REPLY_SENSOR2VEHICLE_TRANSFORM_EUL
REPLY_SENSOR2VEHICLE_TRANSFORM_QUAT
REPLY_SENSOR2VEHICLE_TRANSFORM_DCM
REPLY_EVENT_SUPPORT
REPLY_EVENT_CONTROL
REPLY_EVENT_TRIGGER_STATUS
REPLY_EVENT_ACTION_STATUS
REPLY_EVENT_TRIGGER_CONFIG
REPLY_EVENT_ACTION_CONFIG
REPLY_NMEA_MESSAGE_FORMAT
REPLY_PPS_SOURCE
REPLY_GPIO_CONFIG
REPLY_GPIO_STATE
REPLY_ODOMETER_CONFIG
REPLY_SENSOR_RANGE
REPLY_CALIBRATED_RANGES

◆ SensorRangeType

enum mip::commands_3dm::SensorRangeType : uint8_t
strong
Enumerator
ALL

Only allowed for SAVE, LOAD, and DEFAULT function selectors.

ACCEL

Accelerometer. Range is specified in g.

GYRO

Gyroscope. Range is specified in degrees/s.

MAG

Magnetometer. Range is specified in Gauss.

PRESS

Pressure sensor. Range is specified in hPa.

Function Documentation

◆ extract()

void mip::commands_3dm::extract ( Serializer &  serializer,
NmeaMessage &  self
)

◆ insert()

void mip::commands_3dm::insert ( Serializer &  serializer,
const NmeaMessage &  self
)
Generated by doxygen 1.9.1
